Product Description

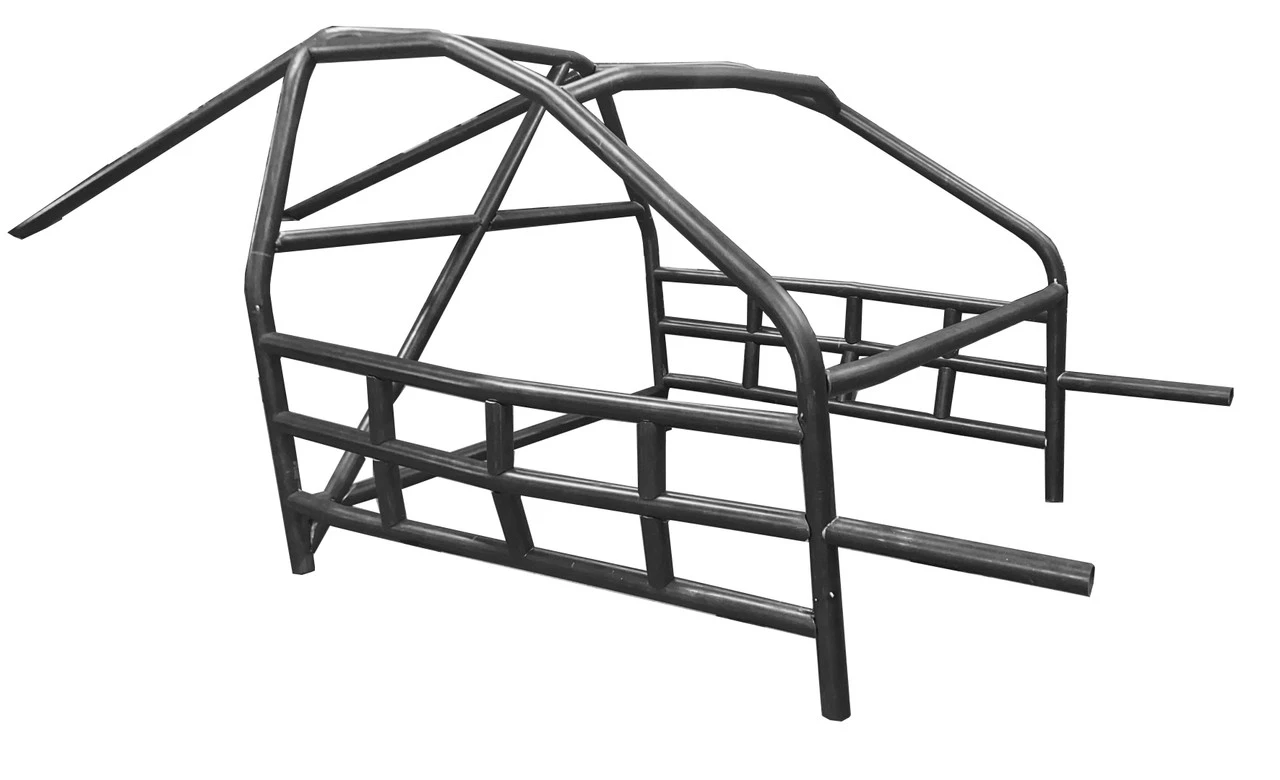

Roll Cage Components Road Race 6 + 2 Roll Cage Kit
Roll Cages are Made to Order
Assembly and Welding Required
Roll Cage is Notched where Applicable
Door Bars and Belt Bars are Notched on One End only to allow
For adjustments on Full Containment Seat Mounting Issues and Proper Driver Belt Angle
Door Bars are not Negative S-Bent around B-Pillar
Multiple Bend Door Bar Standard with Kit Fits Coupe or Sedan
Nascar Door Bar Option Coupe Only
FIA Door Bar Option Coupe or Sedan Notching Required for Final Fit
Standard X Door Bar Option Coupe or Sedan Notching Required for Final Fit
Door Bars Can be made with or without door panel
Main Loop Bent Slightly in Center For Helmet Clearance and Tight Roof Fitment
Roof Loop Bent in Center to fit along Windshield and sides for Helmet Clearance
Material Offered
1.50 x 095 DOM 1020 Tubing
1.50 x 120 DOM 1020 Tubing
1.75 x 095 DOM 1020 Tubing
1.75 x 120 DOM 1020 Tubing
Road Race 6 + 2 Kit Consist of:
1 - Main Loop
1 - Roof Loop
2 - Windshield Posts
1 - Roof Protection Straight Bar
1 - Dash Bar
2 - Foot Protection Bars
2 - Rocker Panel Sill Door Bars
4 - Multiple Bend Door Bar Standard with Kit
12 - Door Bar Dividers
1 - Main Loop Diagonal Bar
2 - Belt Bars Notched on One End
2 - Main Loop Lower Horizontal Bars
2 - Rear Down Bars
4 - Roll Cage Mount Plating
4 - Corner Tube Gussets
20 - Roll Bar Gussets

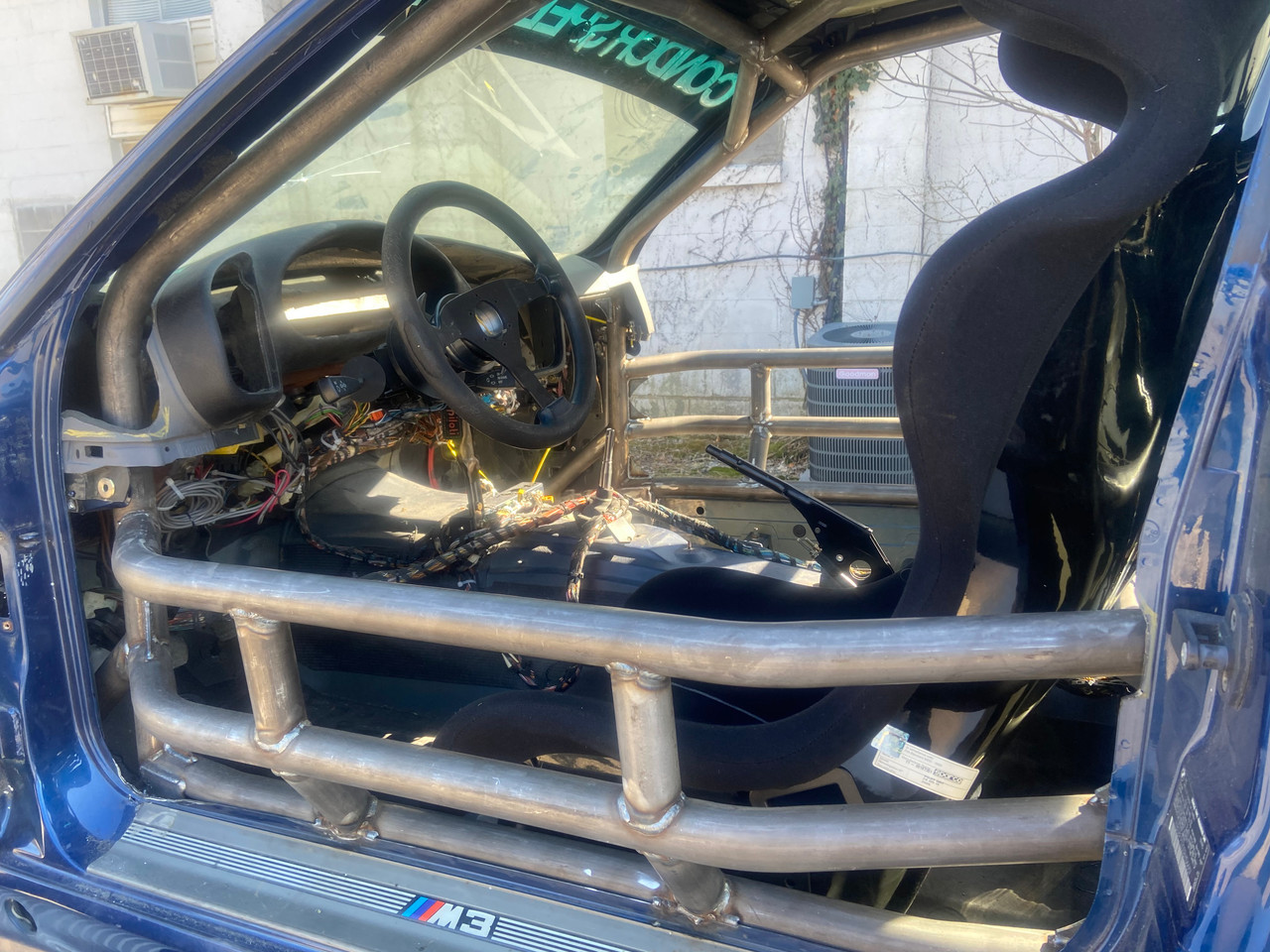

Roll Cage Install Photos available
Instructions and Diagrams emailed
