Product Description

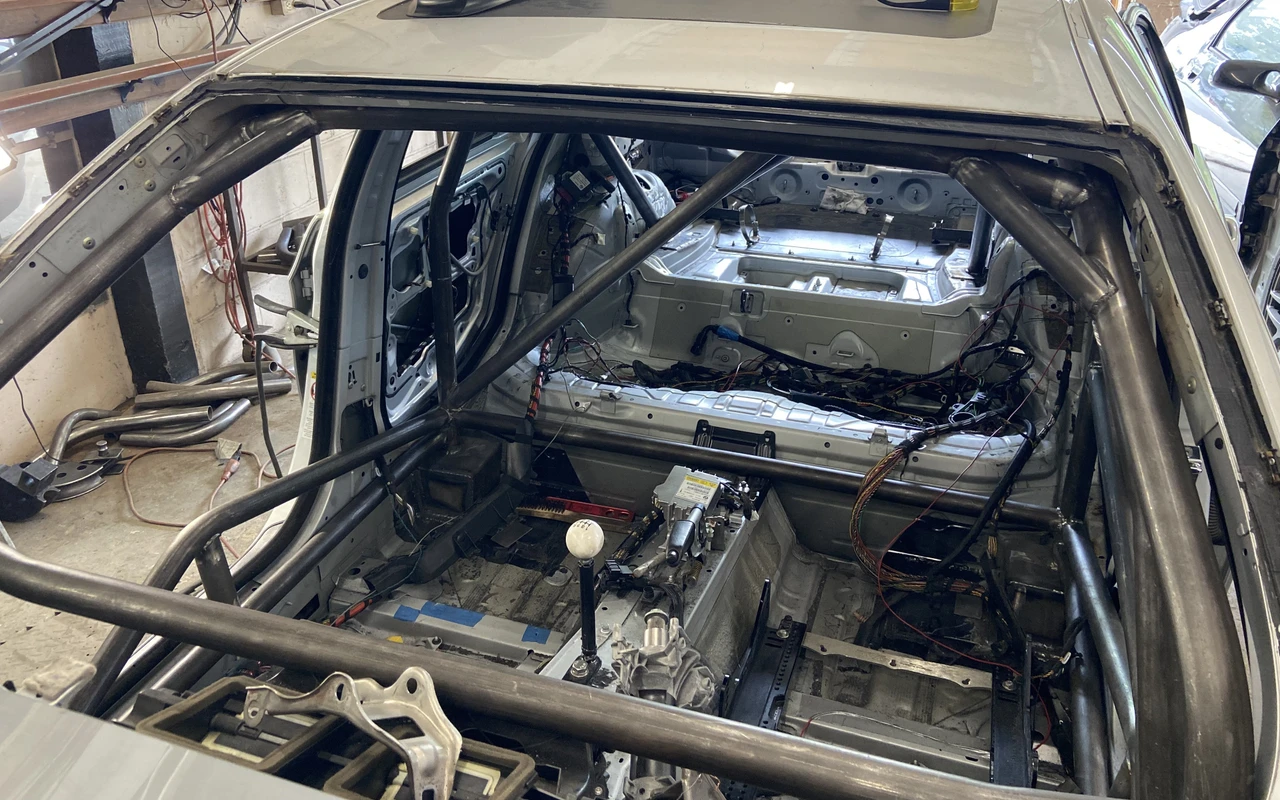

Roll Cage Components BMW E90 Roll Cage Kit
Designed to Help a Racer's Budget
Roll Cages are Made to Order
Material Offered
1.50 x 095 DOM 1020 Tubing
1.50 x 120 DOM 1020 Tubing
1.75 x 095 DOM 1020 Tubing
1.75 x 120 DOM 1020 Tubing
Instructions and Diagrams Emailed
Assembly and Welding Required
Most of the Roll Cage is notched where applicable but
Due to Full Containment Seat Clearance and Mounting Issues
that can occur, some Door Bar notching will be required to achieve desired
Comfort and Location for the Driver or Multiple Drivers
Sill Bars Bent on One End for tighter fit at Rocker Panel
Door Bars are not Negative S-Bent around B-Pillar
Belt Bars Notched on one end to allow you to fit bars for proper belt angle
Click Here for Road Roll Cage Options & Upgrades
BMW E90 Kit Consist of:
1 - Main Loop
2 - Road Race Windshield Posts
1 - Windshield Cross Bar Brace
1 - Dash Bar
2 - Foot Protection Bars
2 - Rocker Panel Sill Door Bars
4 - Standard Horizontal Door Bars Multiple Bends
8 - Door Bar Dividers
1 - Main Loop Diagonal Bar
2 - Belt Bars
2 - Main Loop Lower Horizontal Bars
2 - Upper Rear Down Bars
4 - Standard Roll Cage L Bent Mount Plates
4 - 4 x 6 Foot & Rear Down Bar Plates
20 - Roll Bar Gussets
Note: If you mark freight commercial and your
shipping address is residential, includes a home business
Freight will be held at terminal for you to pick-up
Roll Cage Components is not responsible
for residential delivery charges that occur from
Freight Companies, Address will be checked
