Product Description
Roll Cage Components BMW E46 Roll Cage Kit
Roll Cages are made to Order
Click Here for Road Race Roll Cage Options & Upgrades
Single Bend Door Bar Standard with Kit Fits Coupe or Sedan

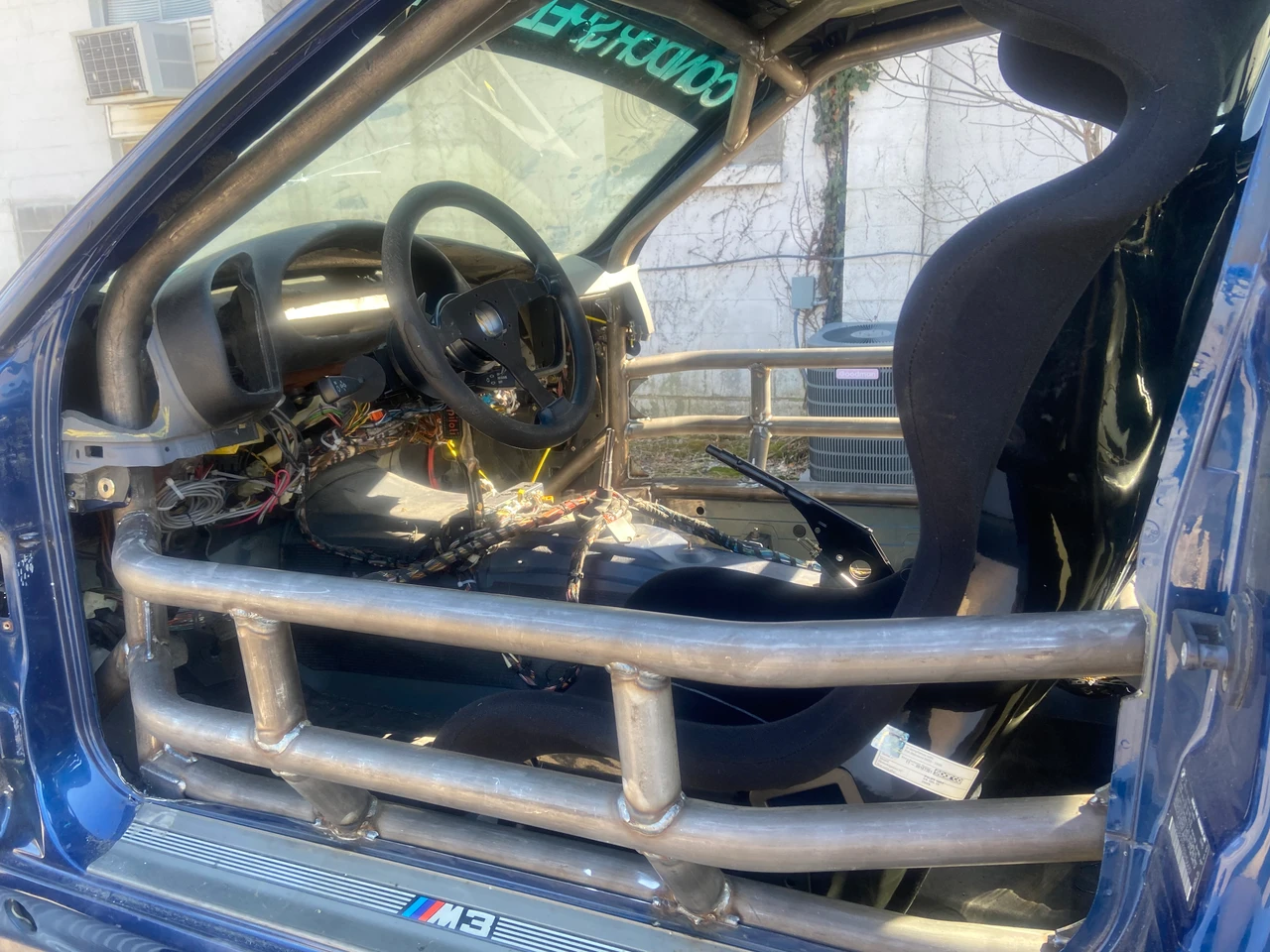

Nascar Door Bar Option Coupe Only
FIA Door Bar Option is Available Notching Required
Door Bars Can be made with or without door panels
Please Contact
Material Offered
1.50 x 095 DOM 1020 Tubing
1.50 x 120 DOM 1020 Tubing
1.75 x 095 DOM 1020 Tubing
1.75 x 120 DOM 1020 Tubing
Instructions and Diagrams Emailed
Assembly and Welding Required
Most of the Roll Cage is notched where applicable but
Due to Full Containment Seat Clearance and Mounting Issues
that can occur, some Door Bar notching will be required to achieve desired
Comfort and Location for the Driver or Multiple Drivers
Sill Bars Bent on One End for tighter fit at Rocker Panel
Door Bars are not Negative S-Bent around B-Pillar
Belt Bars Notched on one end to allow you to fit bars for proper belt angle
BMW E46 Kit Consist of:
1 - Main Loop
2 - Road Race Windshield Posts
1 - Windshield Cross Bar Brace
1 - Dash Bar
2 - Foot Protection Bars
2 - Rocker Panel Sill Door Bars
4 - Single Bend Door Bar Standard with Kit
12 - Door Bar Dividers
1 - Main Loop Diagonal Bar
2 - Belt Bars Notched on One End
2 - Main Loop Lower Horizontal Bars
2 - Upper Rear Down Bars
4 - Standard Roll Cage L Bent Mount Plates
4 - 4 x 6 Foot & Rear Down Bar Plates
20 - Roll Bar Gussets
Note: If you mark freight commercial and your
shipping address is residential, includes a home business
Freight will be held at terminal for you to pick-up
Roll Cage Components is not responsible
for residential delivery charges that occur from
Freight Companies, Address will be checked
Product Videos
Custom Field
Product Reviews
6 Reviews Hide Reviews Show Reviews
-
E46 sedan cage
Installed this kit in a friends drift e46 sedan, and tldr: fantastic kit for the money puts rhodes cage kit to absolute shame. Long version is the kit fit fantastic the bends were spot on and everything went in nicely! The only real con is that the instructions are non existent ? although no too hard to figure out if you have done cage before. But for a first timer could really derail them, a quick write up and finished photos showing how everything should look would make this kit an 11/10. Regardless of that I recommend it for anyone who wants a nice cage but doesn’t have cage kits money, it blows all the competition out of the water! If you want to see finished photos they are on my ig @skid_valve
-
Excellent, as usual
This is the 3rd cage I've ordered from Jim. Quality and instructions are top notch, quick shipping too. Thank You !!!!!!!
-
Great Cage kit
Fitment and quality of the bends were great. Instructions could have been better/tubes labeled, but its not too hard to figure out. I wish the door bars were bent out another ~2 inches, and the windsheild cross bar was a little too short to get it where I wanted it so I had the piece remade. Other then that it fit great.
-
Great, afordable product!
Absolutely satisfied with the hardware and shipping as well as turnover time. Super helpful customer service although instructions could have been better. Luckily my welder is a boss! Otherwise great product would definitely recommend these guys.
-
amazing quality
First off Jim was awesome to do business with. He was flexible with what I wanted in specific and understood what I was saying over the phone when I didn't even know. The quality of bends and notches supplied were awesome. The price I couldn't pass up as well. When I need another cage made up I'll be sure to come back.
-
Buy from these guys with confidence
I ordered a weld-in for my e46 M3. I received the materials in good order, and quickly. The bends seem very accurate, and the fish mouth ends required virtually no modification. The tubing was clean, and they included a bunch of gussets. Thanks again.
