Product Description
Roll Cage Components Econo Builders BMW E92 Roll Cage Kit
All Necessary Bends Completed
Roll Cage Comes Un-Notched
Built For Economy Minded Race Teams
Bars are Cut Long so you can Build your Roll Cage to meet your Teams Drivers Specs
Material Offered
1.50 x 095 DOM 1020 Tubing
1.50 x 120 DOM 1020 Tubing
1.75 x 095 DOM 1020 Tubing
1.75 x 120 DOM 1020 Tubing
Roll Cages are Made to Order
Assembly and Welding Required
Notching Required
Econo Builders BMW E92 Kit Consist of:
1 - Main Loop
2 - Road Race A-Pillar Bars
1 - Windshield Cross Bar Brace
2 - Windshield Post FIA Upper Support Bar
2 - Windshield Post FIA Lower Support Bar
1 - Roof Protection Straight Bar
2 - Foot Protection Bars
1 - Dash Bar
1 - Main Loop Diagonal Bar
1 - Main Loop Upper X Diagonal Bar
1 - Main Loop Lower X Diagonal Bar
2 - Belt Bars
4 - FIA X Style Door Bars
Nascar Door Bar Option Available (Coupe Only) in Drop Down Option Tab
8 - Door Bar Dividers
2 - Rear Down Bars
1 - Rear Down Bar Diagonal
1 - Rear Down Bar Upper X Diagonal Bar
1 - Rear Down Bar Lower X Diagonal Bar
4 - Corner Tube Gussets
20 - Roll Bar Gussets
2 - 3 Foot 1/8 x 6 Flat Plate
1 - 3 Foot 1/8 x 5 Flat Plate

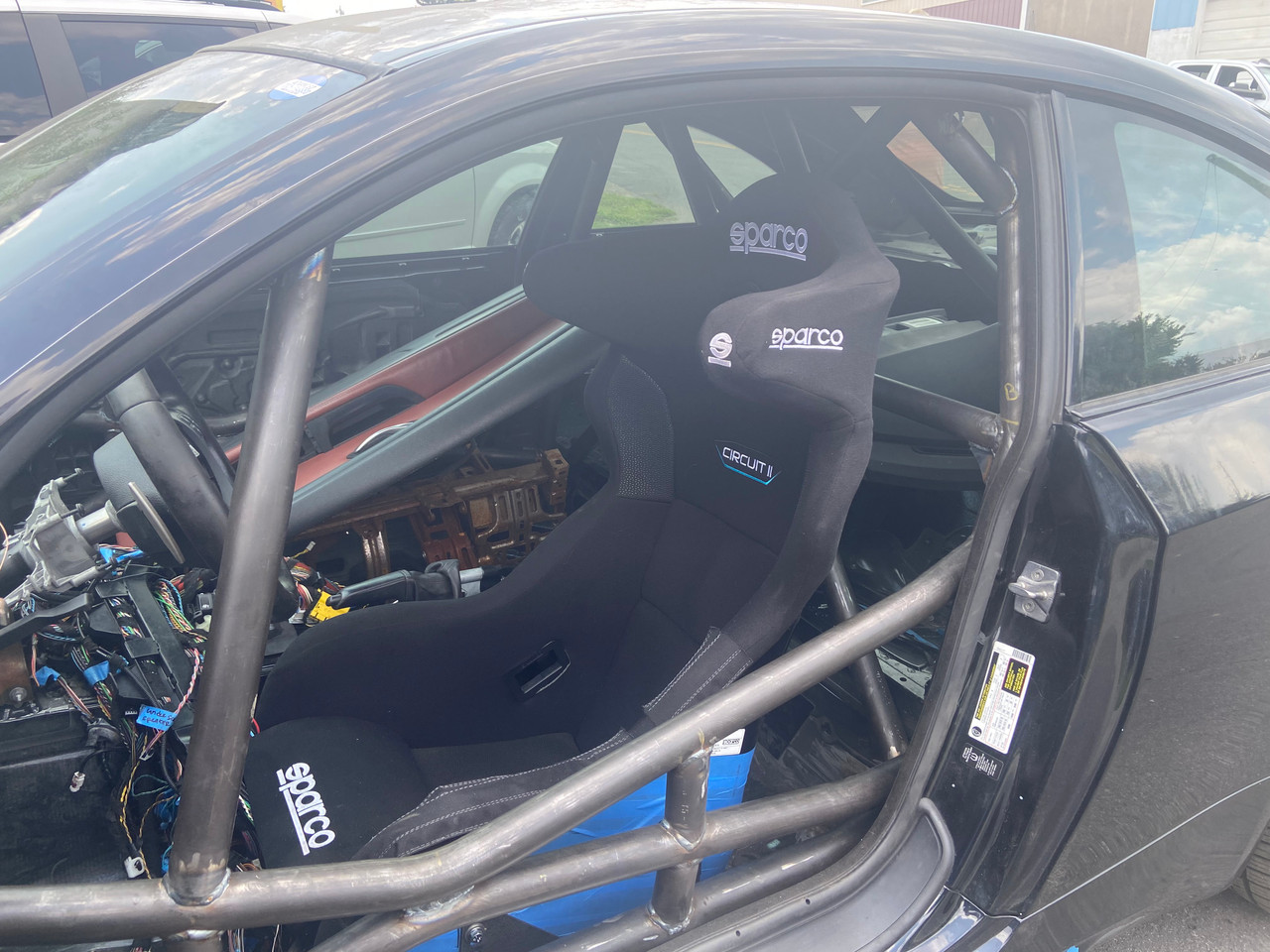

Roll Cage Install Photos available
Instructions and Diagrams emailed
